No one?

Hi Martin,

when you add a "OU", you really add a search base from your AD/LDAP directory. What that means is, that - when Redmine performs the authentication for a user, it really only "looks" in that particular partition of your directory. For example, a typical LDAP structure could look like this:

ou=sales,o=mycompany.com
uid=john.doe,ou=sales,mycompany.com
ou=accounting,o=mycompany.com
uid=jane.doe,ou=accounting,o=mycompany.com
....
cn=groups,o=mycompany.com
cn=admins,cn=groups,o=mycompany.com
cn=assistants,cn=groups,o=mycompany.com
...

Now, if you configure an authentication provider in Redmine, you specify the so called "search base" for that authentication provider as well. Of course, if you specify "ou=sales,o=mycompany.com" as the search base from our example above, Redmine will find the user with uid "john.doe" - but not the user "jane.doe" (because she is under a different search base). Does that make sense so far?

Now, the area of groups is something totally different, because users (typically do not and should not) be "physically" located underneath a group, they are still in the directory only once, underneath the organizational unit (ou) that they belong to (e.g. uid=john.doe,ou=sales,o=mycompany.com).

When you add a user to a group (or even a group to a group (or even a ou to a group (not sure if this is possible, I am not an expert with AD and cannot verify that right now))), the search that Redmine performs with not yield any result, because it does not "ask" the directory for a group membership of a particular user, but only if a user is physically located under a particular search base, such as ou=sales,o=mycompany.com

In order for a group membership to work, the query that Redmine performs needs to be different (this is called the LDAP search filter): it needs to specifically ask the directory server (AD in your case), if a user belongs to (or is "member of" a particular group). But that is currently not implemented. Make sense so far?

Now, why even do all this search base vs. group membership thing? This is for two reasons: limit the search scope (performance, load on server) to a particular subset (many directories are organized by region as opposed to functional groups), but also to limit the search (and result of course) to a particular subset of the directory population (e.g. everbody from ou=germany,o=mycompany.com, or ou=sales,o=mycompany.com)

Now, for your solution: you could try to specify "o=mycompany.com" as the search scope in Redmine, then all users in that directory can be found and will be authenticated by Redmine; the only issue is that they seem to have at least read privileges for all configured projects - that is something, we should try to change in the Redmine authorization system though.

That would require a more sophisticated LDAP subsystem implementation - probably a couple of days worth of effort including testing (in order to accommodate the major LDAP servers, like AD, openLDAP, SUN One, Novell eDirectory, etc.).

For now, an ugly hack in order to get it to work for your situation could be to modify the file "<redmine-home>/app/models/auth_source_ldap.rb" and replace the line

object_filter = Net::LDAP::Filter.eq( "objectClass", "*" )

with

object_filter = Net::LDAP::Filter.construct( "(&(objectClass=*)(memberOf=ou=redmine))" )

Again, this works only with AD and hard coded group "redmine". Note: maybe you have to specify the full dn for the group, something like "ou=redmine,cn=groups,o=mycompany.com" - I cannot test this right now, since I do not have an AD avail.

Good luck and let me know if you had success. Thanks, Jürgen

Thanks Jürgen I'm going to try this :)

BB

Any progress on this issue, Martin?

I needed the same functionality, so i added something similar like Jürgen suggested.
If you are interested, i made a patch for Redmine 0.8.1.

Anders Gustafsson wrote:

Any progress on this issue, Martin?

I needed the same functionality, so i added something similar like Jürgen suggested.
If you are interested, i made a patch for Redmine 0.8.1.

Hi Anders,

unfortunately I made no progress on this topic.

And yes, I would appreciate this very much. The provided version also fits with our installation.

Greetings,
Martin

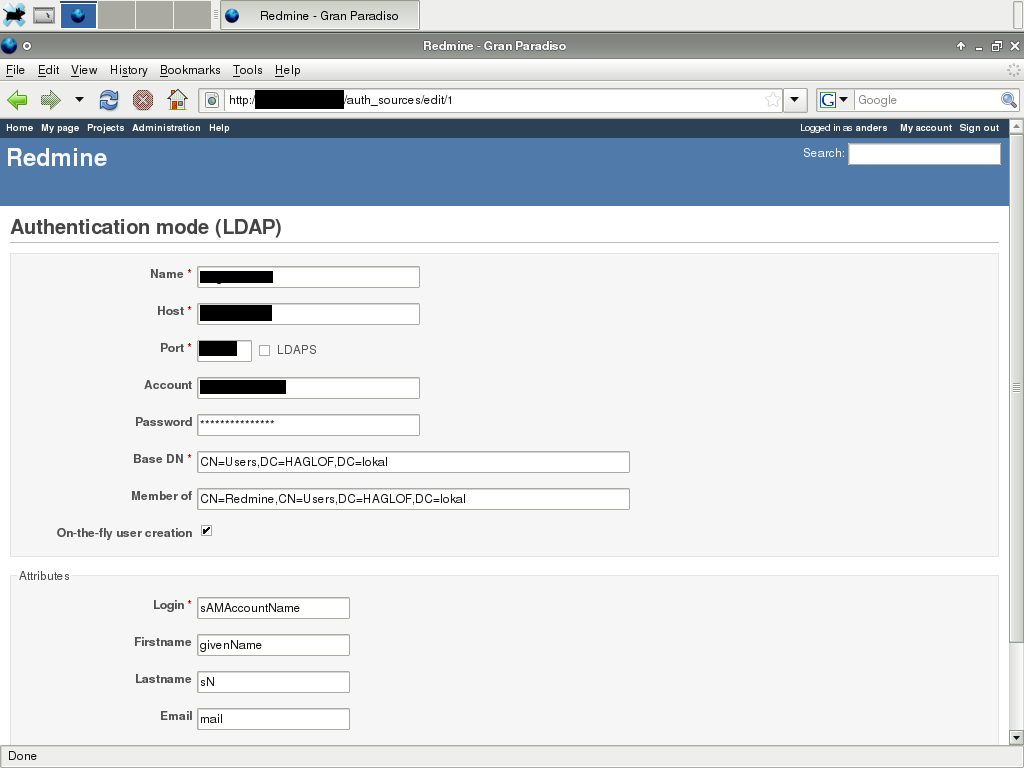

Ok, what i did is that i added another settings field in "Administration->Settings->Authentication->LDAP Authentication" that says "Member of".

In that field you enter something like "CN=group,CN=Users,DC=domain,DC=com" and save.

When the user then logins, he will be matched against both the base-dn and the member of values.

To get the whole thing to work, you have to add another column in the database table "auth_sources" called "memberof".
That column should be a varchar with a size that will fit your memberof-string (i put 60) and be able to be null.
I am not 100% sure, but you might have to add a line to "db/schema.rb" aswell:

t.string  "memberof"

After this is done, you should apply the attached patch file and it should work.
Please try this on a development server, not you precious production Redmine site! I don't want you to mess something important up!!!

Ofcourse not production. Some guys word be really pissed about that here :)

Thanks for the patch I'm going to test that immediately.

Greetings,
Martin

Hey Anders,

I've applied your patch file and made the changes to database and schema. I have done the migrations and loaded the defaults to redmine.

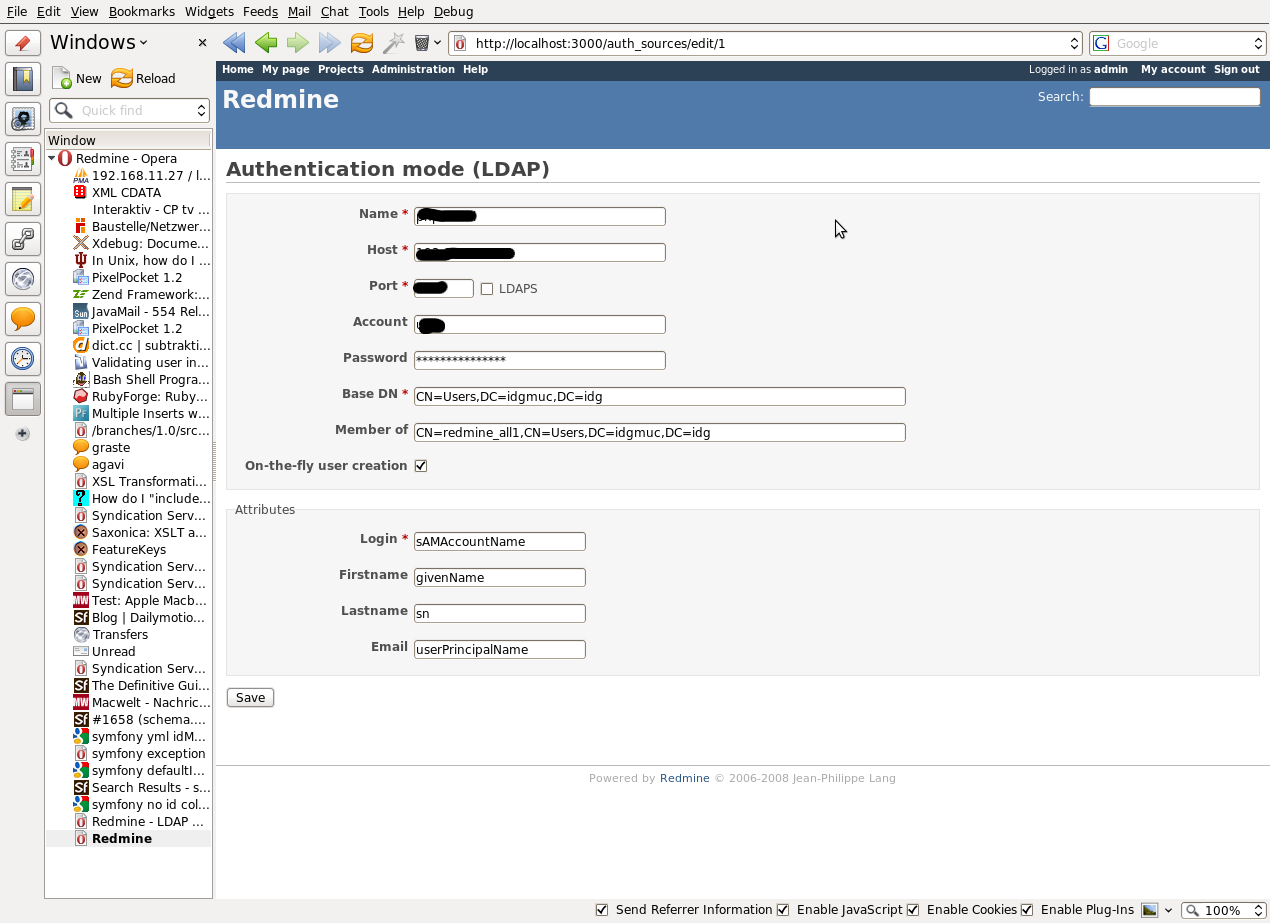

I have added the LDAP authentication server, checked the on the fly creation and left the Base DN field blank. I added CN=redmine_all1,CN=Users,DC=domain,DC=com to the member of field where I am the only user in.

But no luck :|

Have I missed something?

Greetings,
Martin

The base DN field should not be blank.
In your case it would contain "CN=Users,DC=domain,DC=com".

Hope it helps.

OK I'll try this tomorrow.

Greetings

Nope, this does not work for me :|

Hmm really strange, i am using the same like you against a W2003 servers Active Directory LDAP.

Can you somehow query the user you try to login as in the LDAP-server?
Just to determine that the "memberOf" variable really looks like the one you wrote in the Member of field in Redmine.

Hi:
I have a similar situation. I got this structure:
OU = Principal Domain
OU = First Group
OU = Second Group
OU = Another Group

So my Base DN looks like this: CN=Principal Domain, DC=domain,DC=com

When I test the connection this message is returned: Successful connection so it goes OK. When I logout from admin account and try domain account I can't login. Why? What I'm doing wrong? I'm working with the latest Redmine release 0.8.2
Cheers and thanks in advance

I did that:

- created column named memberof in table auto_sources.
- added the line 't.string "memberof"' into db/shema.rb.
- patched with redmine-0.8.1_add_ldap_group_auth.patch

after that, I can not login. Just showed error

---
Internal error
An error occurred on the page you were trying to access.
If you continue to experience problems please contact your redMine administrator for assistance.

Back
---

My environment are:
Windows Server 2003
Redmine offered by Bitnami all-in-one installer

I'd really appreciate it if you help me.

below is log I got that time.
(C:\Program Files\BitNami Redmine Stack\apps\redmine\log\pruduction.log)

---
Processing AccountController#login (for xxx.xxx.xxx.xxx at 2009-12-03 09:31:16) [POST]
Session ID: ab255654ad5578c3ef39b8bd89fb3f63
Parameters: {"action"=>"login", "username"=>"xxxxxxxx", "controller"=>"account", "password"=>"[FILTERED]", "login"=>"繝ｭ繧ｰ繧､繝ｳ ﾂｻ"}

NoMethodError (undefined method `empty?' for nil:NilClass):
/app/models/auth_source_ldap.rb:42:in `authenticate'
/vendor/rails/activerecord/lib/active_record/associations/association_proxy.rb:173:in `send'
/vendor/rails/activerecord/lib/active_record/associations/association_proxy.rb:173:in `method_missing'
/app/models/user.rb:93:in `try_to_login'
/app/controllers/account_controller.rb:53:in `login'
/vendor/rails/actionpack/lib/action_controller/base.rb:1166:in `send'
/vendor/rails/actionpack/lib/action_controller/base.rb:1166:in `perform_action_without_filters'
/vendor/rails/actionpack/lib/action_controller/filters.rb:579:in `call_filters'
/vendor/rails/actionpack/lib/action_controller/filters.rb:572:in `perform_action_without_benchmark'
/vendor/rails/actionpack/lib/action_controller/benchmarking.rb:68:in `perform_action_without_rescue'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/1.8/benchmark.rb:293:in `measure'
/vendor/rails/actionpack/lib/action_controller/benchmarking.rb:68:in `perform_action_without_rescue'
/vendor/rails/actionpack/lib/action_controller/rescue.rb:201:in `perform_action_without_caching'
/vendor/rails/actionpack/lib/action_controller/caching/sql_cache.rb:13:in `perform_action'
/vendor/rails/activerecord/lib/active_record/connection_adapters/abstract/query_cache.rb:33:in `cache'
/vendor/rails/activerecord/lib/active_record/query_cache.rb:8:in `cache'
/vendor/rails/actionpack/lib/action_controller/caching/sql_cache.rb:12:in `perform_action'
/vendor/rails/actionpack/lib/action_controller/base.rb:529:in `send'
/vendor/rails/actionpack/lib/action_controller/base.rb:529:in `process_without_filters'
/vendor/rails/actionpack/lib/action_controller/filters.rb:568:in `process_without_session_management_support'
/vendor/rails/actionpack/lib/action_controller/session_management.rb:130:in `process'
/vendor/rails/actionpack/lib/action_controller/base.rb:389:in `process'
/vendor/rails/actionpack/lib/action_controller/dispatcher.rb:149:in `handle_request'
/vendor/rails/actionpack/lib/action_controller/dispatcher.rb:107:in `dispatch'
/vendor/rails/actionpack/lib/action_controller/dispatcher.rb:104:in `synchronize'
/vendor/rails/actionpack/lib/action_controller/dispatcher.rb:104:in `dispatch'
/vendor/rails/actionpack/lib/action_controller/dispatcher.rb:120:in `dispatch_cgi'
/vendor/rails/actionpack/lib/action_controller/dispatcher.rb:35:in `dispatch'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel/rails.rb:76:in `process'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel/rails.rb:74:in `synchronize'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel/rails.rb:74:in `process'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:159:in `process_client'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:158:in `each'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:158:in `process_client'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:285:in `run'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:285:in `initialize'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:285:in `new'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:285:in `run'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:268:in `initialize'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:268:in `new'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel.rb:268:in `run'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel/configurator.rb:282:in `run'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel/configurator.rb:281:in `each'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel/configurator.rb:281:in `run'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/mongrel_rails:128:in `run'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/../lib/mongrel/command.rb:212:in `run'
C:/Program Files/BitNami Redmine Stack/ruby/lib/ruby/gems/1.8/gems/mongrel-1.1.5-x86-mswin32-60/bin/mongrel_rails:281
C:/Program Files/BitNami Redmine Stack/ruby/bin/mongrel_rails:19:in `load'
C:/Program Files/BitNami Redmine Stack/ruby/bin/mongrel_rails:19

Rendering C:/Program Files/BitNami Redmine Stack/apps/redmine/public/500.html (500 Internal Server Error)

Hi,
I just locked out the account for connection to Active Directory.
Problems have been solved. It works fine with the varchar(200) for memberof column particuraly our environment.

Thanks.
