Defect #21490
closed
Repository Statistics will not populate on client machines, only the host machine when using the http://localhost URL
0%
Description

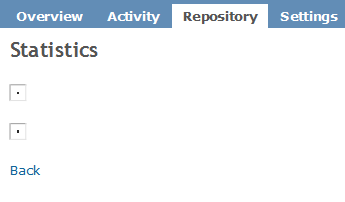

I have Redmine setup on a virtual server (MS Server 2012 R2 Standard). When a user logs into Redmine from their client laptop, then clicks on the Statistics link from the Repository tab, the page populates with 2 missing image icons and the back link.
The issue appears related to the URL used. The Statistics page will only populate the images when accessed using the http://localhost/redmine/ address. When a client logs into Redmine hosted on a remote server, the statistics SVG will not populate.
I have a second instance of Redmine installed on my local machine to test plugins / changes before I perform a change to the company Redmine site on the VM. Both are Bitnami stack installs with:
I did the following to isolate the circumstances in which this happens:Redmine version 3.0.3.stable
Ruby version 2.0.0-p645 (2015-04-13) [i386-mingw32]
Rails version 4.2.1
Database adapter Mysql2
SCM: Subversion 1.9.2
- Accessed my local hosted Redmine using the address http://localhost/redmine/ from my local machine and WAS able to see the stat graphics on the Repository Statistics page
- Accessed my local hosted Redmine using the address http:// <machine_name> /redmine/ from my local machine and was NOT able to see the stat graphics on the Repository Statistics page
- Accessed the remote server hosted Redmine using the address http://localhost/redmine/ in a remote session on the virtual server and WAS able to see the stat graphics on the Repository Statistics page
- Accessed the remote server hosted Redmine using the address http:// <server_name> /redmine/ in a remote session on the virtual server and was NOT able to see the stat graphics on the Repository Statistics page
- Accessed the remote server hosted Redmine using the address http:// <server_name> /redmine/ from my client laptop and was NOT able to see the stat graphics on the Repository Statistics page
I am reporting this as a defect as it should not matter where the page is being viewed from, or the URL address used in the browser. There is also no settings option in either Admin > Settings > Repositories or in Project > Settings > Repositories to enter a value for the hosted machine name / URL used for a hosted Redmine site.
Please provide a fix, or instructions, for allowing the statistics page to be viewed by client machines. I would be quite happy with the resolution being instructions on how to resolve the issue with my current installation of Redmine.
Thanks
Files
Updated by Toshi MARUYAMA almost 9 years ago
- Status changed from New to Closed
- Resolution set to Invalid
It is obvious your environment problem.
There is no host depending setting and coding on Redmine.
source:tags/3.2.0/config/routes.rb#L234
You had better ask other site (e.g. stackoverflow).
Updated by David Wise almost 9 years ago
- Status changed from Closed to Reopened
Can you please expand on what you mean by
"It is obvious your environment problem.
There is no host depending setting and coding on Redmine."
I have tried it on 2 separate environments with 2 separate installations and received the same result. The stats populate depending on if I use http://localhost in the Redmine URL. If the URL identifies the machine name instead of using localhost, then the graphics do not display. There is no error displayed or 404 page. The page is simply created without the graphics. The only difference between the view source of the successfully loaded localhost page and the page with the machine URL is the csrf-token.
Updated by David Wise almost 9 years ago
Here is the access.log from viewing the page with the URL starting with http://localhost/redmine/
127.0.0.1 - - [14/Dec/2015:19:38:24 -0600] "GET /redmine/projects/production/repository/statistics HTTP/1.1" 200 1635
127.0.0.1 - - [14/Dec/2015:19:38:24 -0600] "GET /redmine/javascripts/application.js HTTP/1.1" 304 -
127.0.0.1 - - [14/Dec/2015:19:38:24 -0600] "GET /redmine/stylesheets/application.css HTTP/1.1" 304 -
127.0.0.1 - - [14/Dec/2015:19:38:24 -0600] "GET /redmine/stylesheets/jquery/jquery-ui-1.11.0.css HTTP/1.1" 304 -
127.0.0.1 - - [14/Dec/2015:19:38:24 -0600] "GET /redmine/javascripts/jquery-1.11.1-ui-1.11.0-ujs-3.1.1.js HTTP/1.1" 304 -
127.0.0.1 - - [14/Dec/2015:19:38:24 -0600] "GET /redmine/projects/production/repository/graph?graph=commits_per_month HTTP/1.1" 304 -
127.0.0.1 - - [14/Dec/2015:19:38:24 -0600] "GET /redmine/projects/production/repository/graph?graph=commits_per_author HTTP/1.1" 304 -
Here is the access.log from viewing the page with the URL starting with http://pf01xdhv/redmine/
192.168.1.76 - - [14/Dec/2015:19:38:30 -0600] "GET /redmine/projects/production/repository/statistics HTTP/1.1" 200 1635
192.168.1.76 - - [14/Dec/2015:19:38:30 -0600] "GET /redmine/stylesheets/jquery/jquery-ui-1.11.0.css HTTP/1.1" 304 -
192.168.1.76 - - [14/Dec/2015:19:38:30 -0600] "GET /redmine/stylesheets/application.css HTTP/1.1" 304 -
192.168.1.76 - - [14/Dec/2015:19:38:30 -0600] "GET /redmine/javascripts/jquery-1.11.1-ui-1.11.0-ujs-3.1.1.js HTTP/1.1" 304 -
192.168.1.76 - - [14/Dec/2015:19:38:30 -0600] "GET /redmine/javascripts/application.js HTTP/1.1" 304 -
192.168.1.76 - - [14/Dec/2015:19:38:31 -0600] "GET /redmine/images/loading.gif HTTP/1.1" 304 -
192.168.1.76 - - [14/Dec/2015:19:39:31 -0600] "-" 408 -
192.168.1.76 - - [14/Dec/2015:19:39:31 -0600] "-" 408 -
192.168.1.76 - - [14/Dec/2015:19:39:31 -0600] "-" 408 -
Both URLs access the same instance of Redmine, which is installed on the windows computer named pf01xdhv. Both attempts to access the page where made from the pf01xdhv windows machine. The first example shows the statistic graphs, the second does not. The only difference between the view source for the repository/statistics page is the content value for csrf-token
Updated by David Wise almost 9 years ago
All other pages for the Redmine site work with either URL address.
Updated by Toshi MARUYAMA almost 9 years ago
- Status changed from Reopened to Needs feedback
Updated by David Wise almost 9 years ago
The \Bitnami\redmine-3.0.3-0\apache2\logs\access.log is posted above. The \Bitnami\redmine-3.0.3-0\apache2\logs\error.log has no entries during this time. Below is the entries from the Bitnami\redmine-3.0.3-0\apps\redmine\htdocs\log\production.log at the time:
Completed 200 OK in 16ms (Views: 0.0ms | ActiveRecord: 15.6ms)
Started GET "/redmine/projects/production/repository/statistics" for 127.0.0.1 at 2015-12-14 19:38:24 -0600
Processing by RepositoriesController#stats as HTML
Parameters: {"id"=>"production"}
Current user: dwise10 (id=1)
Rendered repositories/stats.html.erb within layouts/base (0.0ms)
Completed 200 OK in 16ms (Views: 15.6ms | ActiveRecord: 0.0ms)
Started GET "/redmine/projects/production/repository/graph?graph=commits_per_author" for 127.0.0.1 at 2015-12-14 19:38:24 -0600
Started GET "/redmine/projects/production/repository/graph?graph=commits_per_month" for 127.0.0.1 at 2015-12-14 19:38:24 -0600
Processing by RepositoriesController#graph as HTML
Parameters: {"graph"=>"commits_per_author", "id"=>"production"}
Processing by RepositoriesController#graph as HTML
Parameters: {"graph"=>"commits_per_month", "id"=>"production"}
Current user: dwise10 (id=1)
Current user: dwise10 (id=1)
Rendered text template (0.0ms)
Sent data (0.0ms)
Completed 200 OK in 31ms (Views: 0.0ms | ActiveRecord: 15.6ms)
Rendered text template (0.0ms)
Sent data (0.0ms)
Completed 200 OK in 47ms (Views: 0.0ms | ActiveRecord: 15.6ms)
Started GET "/redmine/projects/production/repository/statistics" for 127.0.0.1 at 2015-12-14 19:38:30 -0600
Processing by RepositoriesController#stats as HTML
Parameters: {"id"=>"production"}
Current user: dwise10 (id=1)
Rendered repositories/stats.html.erb within layouts/base (0.0ms)
Completed 200 OK in 16ms (Views: 15.6ms | ActiveRecord: 0.0ms)
Are there any other log files I am missing that you want me to post?
Updated by Toshi MARUYAMA almost 9 years ago
- Status changed from Needs feedback to Closed
Log says it is your environment problem because second block does not have 'Started GET "/redmine/projects/production/repository/graph?graph=commits_per_author"'.
