Feature #5634

Export issue to PDF does not include Subtasks and Related Issues

Added by Daniel Netzer over 11 years ago. Updated almost 10 years ago.

Status:ClosedStart date:2010-06-02
Priority:NormalDue date:
Assignee:Toshi MARUYAMA% Done:

100%

Category:Issues
Target version:1.3.0
Resolution:Fixed

Description

Using Redmine trunk, exporting an issue to PDF misses the new subtaks (#443) and also related task in the PDF export. (source:trunk/lib/redmine/export).

pdf.rb_1.0.5.patch Magnifier - patch against 1.0.5 (4.16 KB) Bernhard Furtmueller, 2011-01-28 19:56

0001-Forward-port-of-Export-issue-to-PDF-does-not-include.patch Magnifier - patch against trunk (4.43 KB) Bernhard Furtmueller, 2011-01-28 20:57

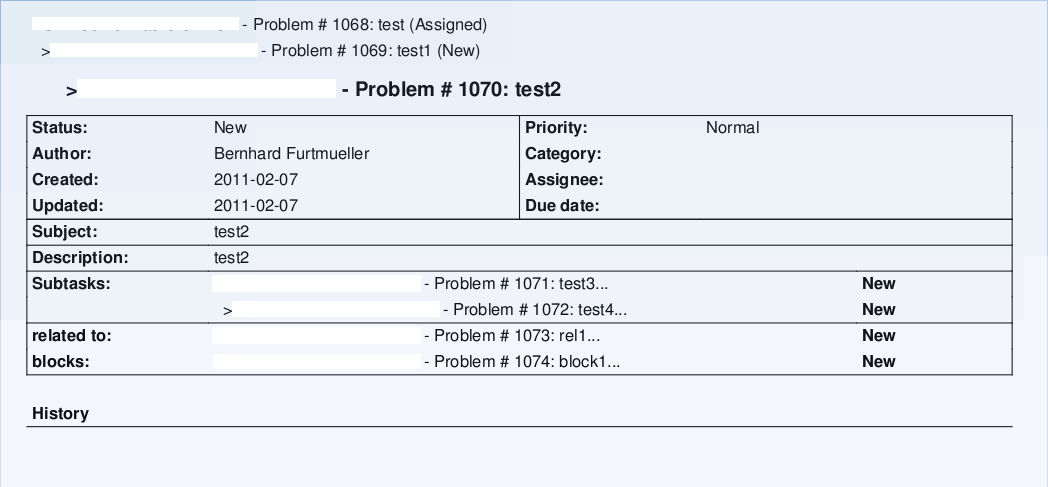

pdf.png - pdf view of tracker with related issues, parents and childs (57.1 KB) Bernhard Furtmueller, 2011-02-07 09:39

0001-Forward-port-of-Export-issue-to-PDF-does-not-include_2.patch Magnifier - patch against 1.2-stable (3.47 KB) Bernhard Furtmueller, 2011-08-26 19:30

r7764.patch Magnifier (3.2 KB) Toshi MARUYAMA, 2011-11-11 11:00

pdf.rb_r7782.patch Magnifier (3.31 KB) Jun NAITOH, 2011-11-12 00:35


Related issues

Related to Redmine - Patch #8617: Indent subject of subtask ticket in exported issues PDF Closed 2011-06-15
Duplicated by Redmine - Feature #9535: Export PDF with subtask Closed 2011-11-07

Associated revisions

Revision 7787
Added by Toshi MARUYAMA almost 10 years ago

pdf: add ancestor issues at head of issue pdf (#5634)

Contributed by Bernhard Furtmueller and Jun NAITOH.

Revision 7788
Added by Toshi MARUYAMA almost 10 years ago

pdf: add subtasks and related issues at issue pdf (#5634)

Contributed by Bernhard Furtmueller and Jun NAITOH.

Revision 7845
Added by Jean-Philippe Lang almost 10 years ago

Omit subtasks/related issues sections when empty on PDF export (#5634).

Revision 7965
Added by Toshi MARUYAMA almost 10 years ago

pdf: expand relational issues status column width of issue pdf (#5634)

History

#1 Updated by Eric Davis over 11 years ago

  • Tracker changed from Defect to Feature

#2 Updated by Daniel Netzer about 11 years ago

  • Status changed from New to Resolved
  • % Done changed from 0 to 90

Thanks to Heiko this solves it for me:

        i = 0
        issue.relations.select { |r| r.other_issue(issue).visible? }.each do |relation|
          if i == 0
            pdf.SetFontStyle('B',9)
            pdf.Cell(35,5, l(relation.label_for(issue)) + ":", "LT")
            pdf.SetFontStyle('', 9)
            pdf.MultiCell(155,5, "#{relation.other_issue(issue).project} - #{relation.other_issue(issue).tracker} # #{relation.other_issue(issue).id}: #{relation.other_issue(issue).subject}", "RT")
          else
            pdf.SetFontStyle('B',9)
            pdf.Cell(35,5, l(relation.label_for(issue)) + ":", "L")
            pdf.SetFontStyle('', 9)
            pdf.MultiCell(155,5, "#{relation.other_issue(issue).project} - #{relation.other_issue(issue).tracker} # #{relation.other_issue(issue).id}: #{relation.other_issue(issue).subject}", "R")
          end
          i += 1
        end

insert above after the following block:

        for custom_value in issue.custom_field_values
          pdf.SetFontStyle('B',9)
          pdf.Cell(35,5, custom_value.custom_field.name + ":","L")
          pdf.SetFontStyle('',9)
          pdf.MultiCell(155,5, (show_value custom_value),"R")
        end

in lib/redmine/export/pdf.rb

#3 Updated by Bernhard Furtmueller over 10 years ago

I took this patch and enhanced it to really show subtasks, also ancestors are shown on top

#5 Updated by Bernhard Furtmueller over 10 years ago

#6 Updated by Xiaobing Sun over 10 years ago

Thanks you for the fix.
Open it can be adopted to the trunk.

The code can work on 1.1.2.
For 1.2.0, it need a little change.

#7 Updated by Etienne Massip over 10 years ago

  • Status changed from Resolved to New
  • Target version set to Candidate for next major release

#9 Updated by yannick quenec'hdu almost 10 years ago

Hi Bernhard,

Your Patch need a little change to work with Redmine 1.2.1

Thank for your patch

Cheers
Yannick

#10 Updated by Toshi MARUYAMA almost 10 years ago

  • Status changed from New to 7
  • Assignee set to Toshi MARUYAMA

#11 Updated by Jun NAITOH almost 10 years ago

Hi, I rewritie note-8 patch for trunk, now.
I think to note-8 patch have some probrem.
If you wait some day, so I will post new patch.
Please wait.

#12 Updated by Toshi MARUYAMA almost 10 years ago

This is a patch for r7764.

#13 Updated by Toshi MARUYAMA almost 10 years ago

Note 12 patch line 288-298 has smart indents.
But, line 364-407 indents and truncating is ugly.
Could you rewrite?

#14 Updated by Jun NAITOH almost 10 years ago

Toshi MARUYAMA wrote:

Note 12 patch line 288-298 has smart indents.

I rewrite now.

  • delete ancestor.project. Because ancestor.project is identical with issue's project.
  • delete issue.subject by title. Because it is duplicate in the Cell.
  • add limit for nesting.

But, line 364-407 indents and truncating is ugly.
Could you rewrite?

Sorry, I tried rewrite 364-407 with MultiCell now. But I give up use MultiCell.
If I use MultiCell, so I need MovePage(back to before page) method. But TCPDF didn't have this method.

I think to your implementation isn't best, but better.

I added to limit for nesting.

I attached rewrite patch for r7782.

#15 Updated by Toshi MARUYAMA almost 10 years ago

  • Subject changed from Export issue to PDF does not include Subtaks and Related Issues to Export issue to PDF does not include Subtasks and Related Issues

#16 Updated by Toshi MARUYAMA almost 10 years ago

  • Target version changed from Candidate for next major release to 1.3.0
  • % Done changed from 90 to 100

I committed note 14 patch in trunk r7787 and r7788.
I changed one line.
source:trunk/lib/redmine/export/pdf.rb@7788#L365

#17 Updated by Jun NAITOH almost 10 years ago

Thank you!

#18 Updated by Jean-Philippe Lang almost 10 years ago

  • Status changed from 7 to Closed
  • Resolution set to Fixed

I think we can close now.
