The following is the database model with relations drawn, except those which are implicit. For example: tables which contains
xxx_id columns will not have a drawn relation.
Note: This model is not updated. The current stable version is r4352 - v 1.0.3

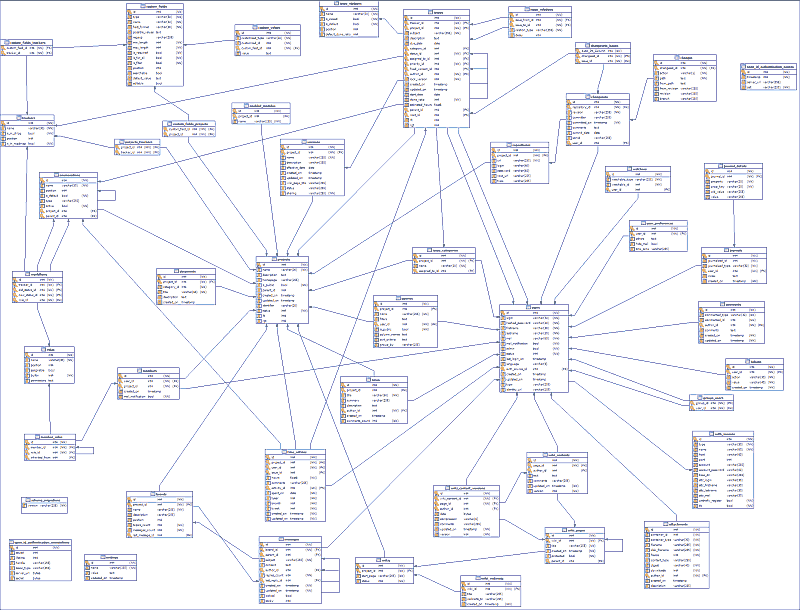

Model diagram (r4033 - v 1.0.1)¶
- Add a document explaining each field in the model
Add version-information of the here documented Redmine instance
Contributions are welcome. Feel free to pick-up a todo-item or add yours...
- (Forum-thread dedicated to this wiki-page)
