Defect #34473

closed

Displaying the table of content on the right causes wrong position

Added by César DJ Caësar 9114 almost 4 years ago. Updated 4 months ago.

Status:
Closed
Priority:
Normal
Assignee:
Category:
Text formatting
Target version:
Start date:
Due date:
% Done:

0%

Estimated time:
Resolution:
Fixed
Affected version:

Description

Hi everyone,
I installed the latest version of Redmine and I started to try the wiki.
I wrote a simple page with titles ans subtitles, and at the very beginning of the page I put:

{{>toc}}

to get the table of content on the top right corner.

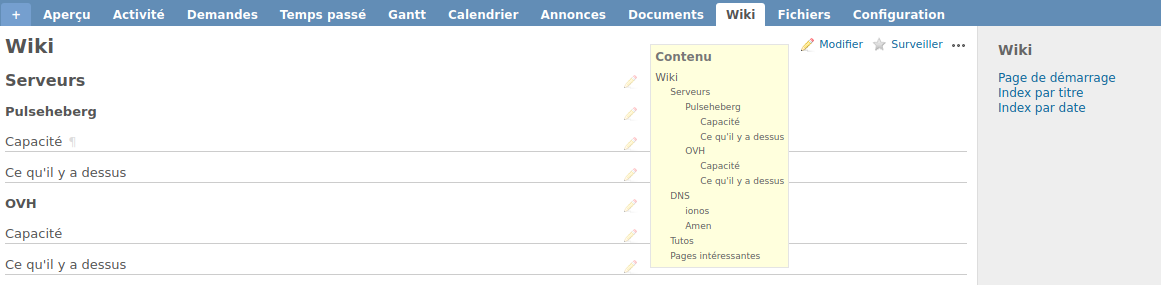

Actually as you can see the result is quite disturbing because I would have expected to get the TOC under "Modifier Surveiller".

I think it may be a UI bug.


Files

UI redmine toc on the right.png (41.4 KB) UI redmine toc on the right.png César DJ Caësar 9114, 2020-12-18 11:39
screenshot 2024-06-03 15.12.16.png (85.3 KB) screenshot 2024-06-03 15.12.16.png Mizuki ISHIKAWA, 2024-06-03 08:13
screenshot 2024-06-03 15.12.25.png (104 KB) screenshot 2024-06-03 15.12.25.png Mizuki ISHIKAWA, 2024-06-03 08:13
screenshot 2024-06-03 15.12.33.png (106 KB) screenshot 2024-06-03 15.12.33.png Mizuki ISHIKAWA, 2024-06-03 08:13
Actions #1

Updated by Go MAEDA almost 4 years ago

  • File 34473.png 34473.png added
  • Status changed from New to Confirmed
  • Affected version changed from 4.1.1 to 3.4.13

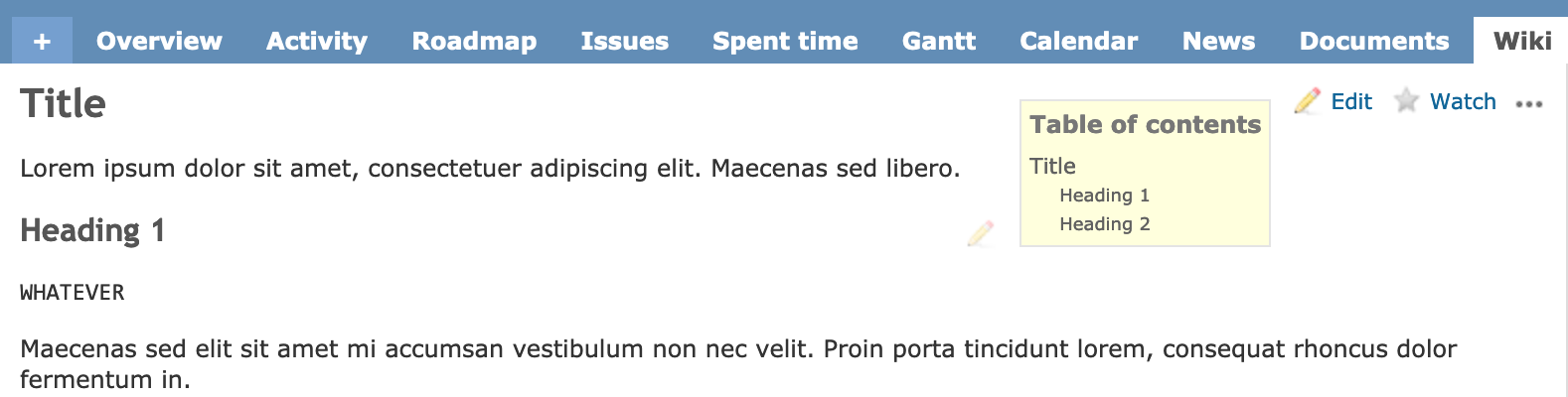

I have confirmed the issue with Redmine 3.4, 4.0, and 4.1. It occurs when "{{>toc}}" is placed at the first line.

You can avoid the issue by placing "{{>toc}}" after the first heading instead of the first line.

Actions #2

Updated by Mizuki ISHIKAWA 5 months ago

This can be solved by using the clear css properties.
https://developer.mozilla.org/en-US/docs/Web/CSS/clear

diff --git a/app/assets/stylesheets/application.css b/app/assets/stylesheets/application.css
index 2d82fba7d..8ab85f269 100644
--- a/app/assets/stylesheets/application.css
+++ b/app/assets/stylesheets/application.css
@@ -1405,8 +1405,10 @@ div.wiki ul.toc {
 }
 * html div.wiki ul.toc { width: 50%; } /* IE6 doesn't autosize div */

-div.wiki ul.toc.right { float: right; margin-left: 12px; margin-right: 0; width: auto; }
-div.wiki ul.toc.left  { float: left; margin-right: 12px; margin-left: 0; width: auto; }
+div.wiki ul.toc.right { float: right; margin-left: 12px; margin-right: 0; width: auto; clear: right
+;}
+div.wiki ul.toc.left  { float: left; margin-right: 12px; margin-left: 0; width: auto; clear: left
+  ; }
 div.wiki ul.toc ul { margin: 0; padding: 0; }
 div.wiki ul.toc li {list-style-type:none; margin: 0; font-size:12px;}
 div.wiki ul.toc>li:first-child {margin-bottom: .5em; color: #777;}

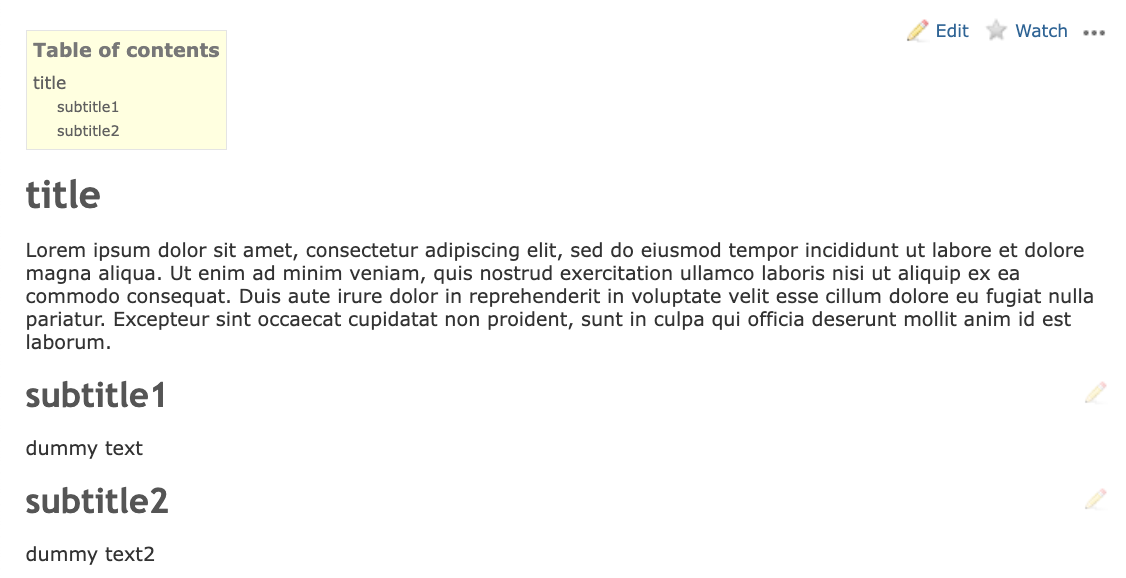

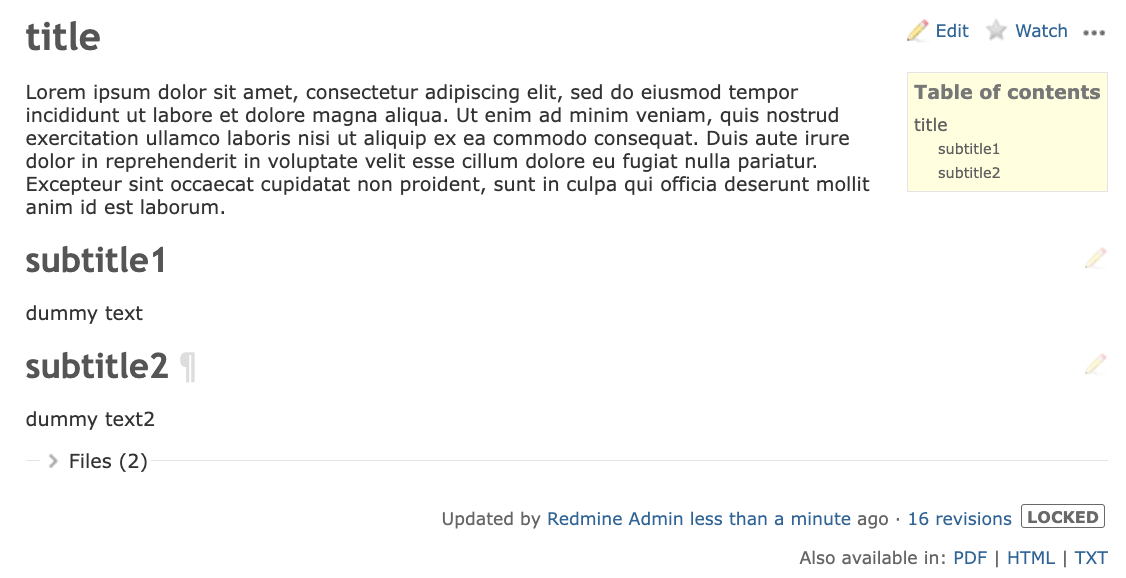

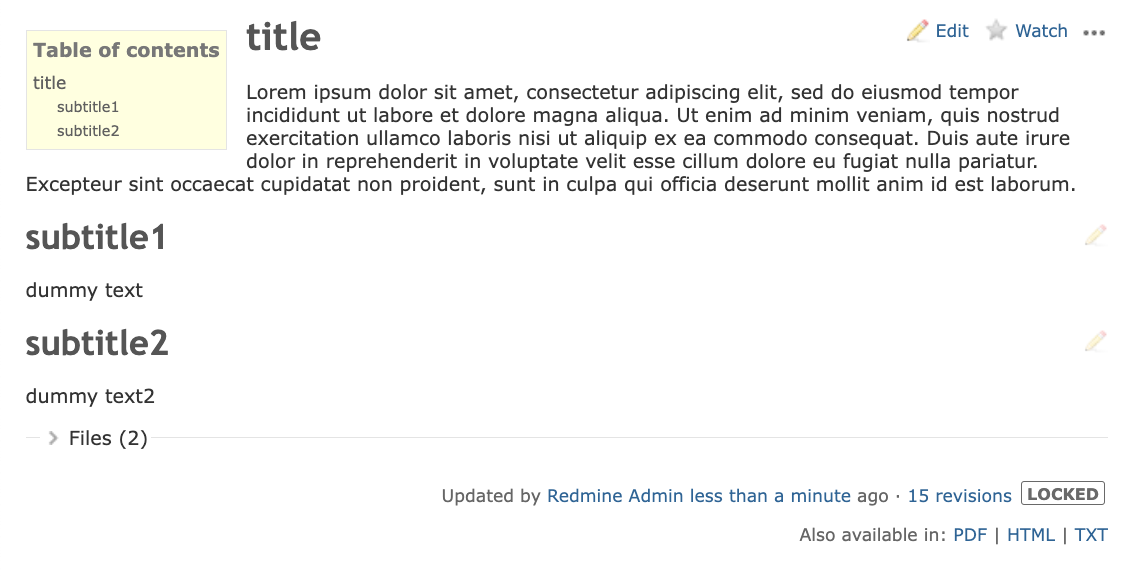

Toc after CSS changes.
{{toc}} {{<toc}} {{>toc}}
Actions #3

Updated by Go MAEDA 5 months ago

  • Target version set to 6.0.0

Setting the target version to 6.0.0.

Actions #4

Updated by Go MAEDA 5 months ago

  • Category changed from UI to Text formatting
Actions #5

Updated by Go MAEDA 4 months ago

  • Status changed from Confirmed to Closed
  • Assignee set to Go MAEDA
  • Resolution set to Fixed

Committed the fix in r22885. Thank you.
