Defect #27319

open

Impossible to create a new version

Added by Yohann Prigent over 6 years ago. Updated about 2 years ago.

Status:
Needs feedback
Priority:
Normal
Assignee:
-
Category:
Projects
Target version:
-
Start date:
Due date:
% Done:

0%

Estimated time:
Resolution:
Affected version:

Description

Hello,

I recently upgraded to Redmine 3.4.3, and I can't create new versions in projects. I have this error :

Status is not included in the list

Nothing in the log...


Files

Screenshot 2017-10-31 13.46.34.png (93.5 KB) Screenshot 2017-10-31 13.46.34.png Yohann Prigent, 2017-10-31 13:47
Screenshot 2017-10-31 13.47.05.png (112 KB) Screenshot 2017-10-31 13.47.05.png Yohann Prigent, 2017-10-31 13:49
status_error.png (9.54 KB) status_error.png Adam Gay, 2017-11-15 17:56
dump-defs-4.2.3.diff (17.5 KB) dump-defs-4.2.3.diff Jonathan Cormier, 2022-01-04 23:23

Related issues

Related to Redmine - Defect #32556: Cannot create project version Closed

Actions
Has duplicate Redmine - Defect #36384: Error on roadmap creation after migrating to 4.2.3Closed

Actions
Actions #1

Updated by Go MAEDA over 6 years ago

  • Status changed from New to Needs feedback

Are you experiencing the problem in all projects? Or in a particular project?

Actions #2

Updated by Yohann Prigent over 6 years ago

In all project. The field status for the new version form is not appearing anymore, triggering the error on submit.

Actions #3

Updated by Go MAEDA over 6 years ago

I don't understand the cause, but it may be caused by some plugin. Could you try without any plugin?

Actions #4

Updated by Yohann Prigent over 6 years ago

I've removed all plugins, and changed the theme to the default one to be sure. Same issue.

Actions #5

Updated by Toshi MARUYAMA over 6 years ago

  • Description updated (diff)
Actions #6

Updated by Toshi MARUYAMA over 6 years ago

Yohann Prigent wrote:

In all project. The field status for the new version form is not appearing anymore, triggering the error on submit.

What is "The field status for the new version"?

Actions #7

Updated by Yohann Prigent over 6 years ago

Here you can see two screenshots.

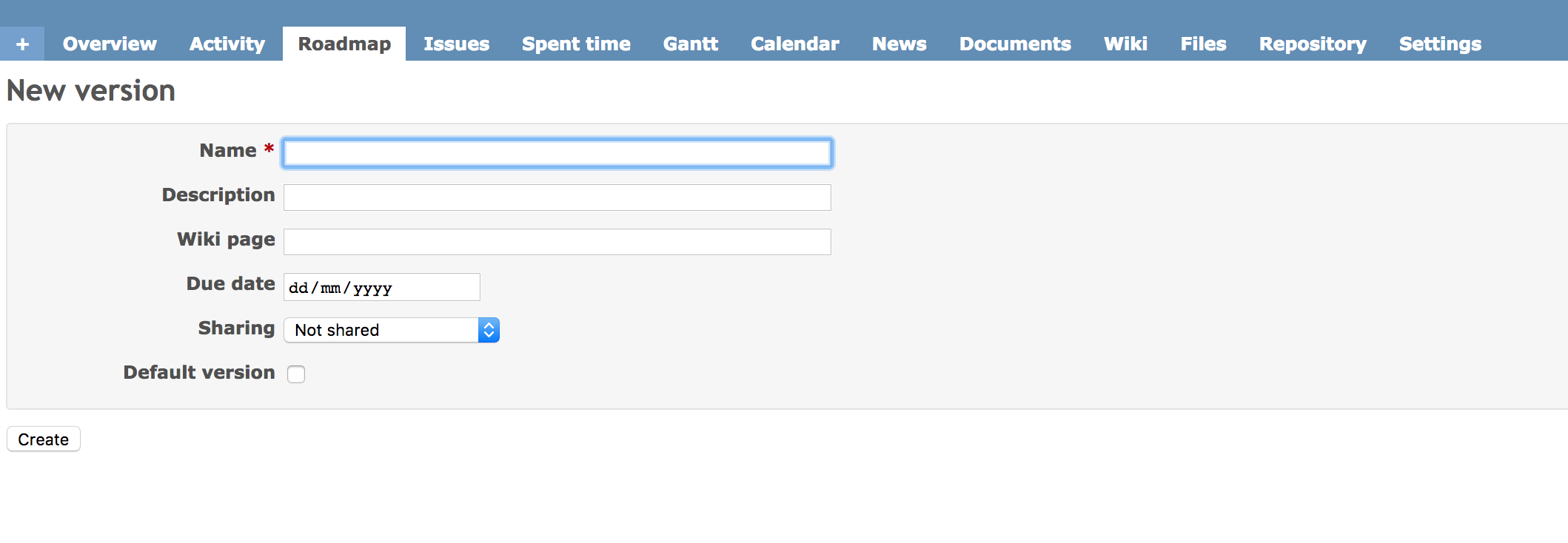

The first one with the default theme on the page to create a new version, where the field Status is not added (and generating the version).

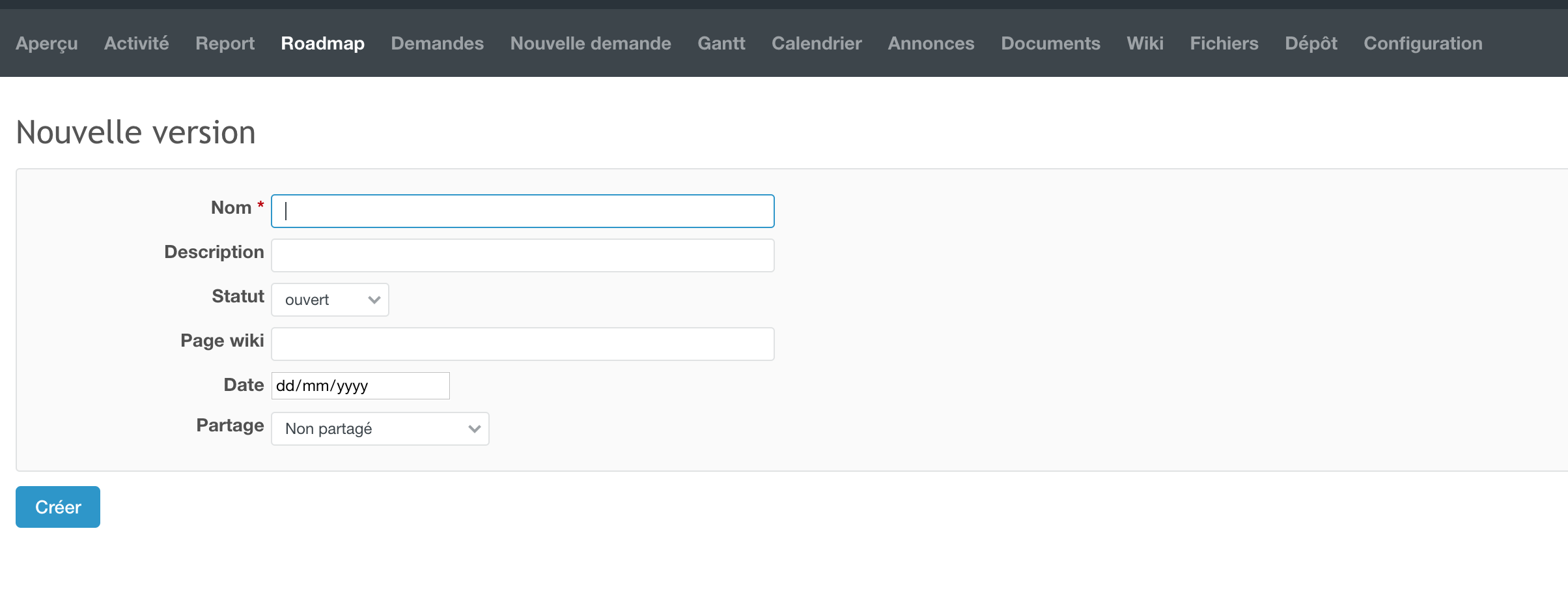

The second one on another Redmine instance not upgraded which have the field Status, no not generating the error when I try to save this new version.

Actions #8

Updated by Toshi MARUYAMA over 6 years ago

Yohann Prigent wrote:

The first one with the default theme on the page to create a new version, where the field Status is not added (and generating the version).

It is expected behaviour.
source:tags/3.4.3/app/views/versions/_form.html.erb#L7

Check your db definition.

source:tags/3.4.3/db/migrate/20091108092559_add_versions_status.rb#L3

add_column :versions, :status, :string, :default => 'open'
Actions #9

Updated by Yohann Prigent over 6 years ago

I do not have the default open added to my column in my db (MariaDB). I tried to run again bundle exec rake db:migrate RAILS_ENV=production but same issue. I've added the field manually to the db and now it works... Migration issue ?

Actions #10

Updated by Toshi MARUYAMA over 6 years ago

MariaDB is not supported.

Actions #11

Updated by Adam Gay over 6 years ago

toshio harita, how exactly do I check the db definition?

I am having this exact issue, however I am using the mysql2 db adapter.

Background on my instance of RM, we started out with Redmine v1.2 long time ago, and I've been steadily upgrading with most new versions. We haven't had a problem until we recently moved from v3.3 to v3.4.

EDIT: I've run the rake commands several times like so, but the issue remains:

bundle exec rake db:migrate RAILS_ENV=production
bundle exec rake redmine:plugins:migrate RAILS_ENV=production
bundle exec rake tmp:cache:clear tmp:sessions:clear RAILS_ENV=production

EDIT2: I just tried to run this command thinking it might add the column that's possibly missing (based on comment #9), but the issue persists:

bundle exec add_column :versions, :status, :string, :default => 'open'

EDIT3: Tried another rake command, but still no luck:

# bundle exec rake redmine:load_default_data

Select language: ar, az, bg, bs, ca, cs, da, de, el, en, en-GB, es, es-PA, et, eu, fa, fi, fr, gl, he, hr, hu, id, it, ja, ko, lt, lv, mk, mn, nl, no, pl, pt, pt-BR, ro, ru, sk, sl, sq, sr, sr-YU, sv, th, tr, uk, vi, zh, zh-TW [en]
====================================
Some configuration data is already loaded.

Details on my environment:

Environment:
  Redmine version                3.4.3.stable
  Ruby version                   2.4.2-p198 (2017-09-14) [x86_64-linux]
  Rails version                  4.2.8
  Environment                    production
  Database adapter               Mysql2
SCM:
  Subversion                     1.8.10
  Mercurial                      3.1.2
  Bazaar                         2.7.0
  Git                            2.1.4
  Filesystem
Redmine plugins:
  clipboard_image_paste          1.12
  redmine_base_deface            0.0.1
  redmine_maintenance_mode       2.1.0
  redmine_theme_changer          0.3.1

Actions #12

Updated by Toshi MARUYAMA over 6 years ago

Adam Gay wrote:

toshio harita, how exactly do I check the db definition?

mysql> desc versions;
+-----------------+--------------+------+-----+---------+----------------+
| Field           | Type         | Null | Key | Default | Extra          |
+-----------------+--------------+------+-----+---------+----------------+
| id              | int(11)      | NO   | PRI | NULL    | auto_increment |
| project_id      | int(11)      | NO   | MUL | 0       |                |
| name            | varchar(255) | NO   |     |         |                |
| description     | varchar(255) | YES  |     |         |                |
| effective_date  | date         | YES  |     | NULL    |                |
| created_on      | datetime     | YES  |     | NULL    |                |
| updated_on      | datetime     | YES  |     | NULL    |                |
| wiki_page_title | varchar(255) | YES  |     | NULL    |                |
| status          | varchar(255) | YES  |     | open    |                |
| sharing         | varchar(255) | NO   | MUL | none    |                |
+-----------------+--------------+------+-----+---------+----------------+
10 rows in set (0.00 sec)

Actions #13

Updated by Adam Gay over 6 years ago

Thanks Toshi. I have made my status field match yours. After I set the `status` column to default 'open', and then ran the same rake commands, I still have the issue.

mysql>  show columns from versions;
+-----------------+--------------+------+-----+---------+----------------+
| Field           | Type         | Null | Key | Default | Extra          |
+-----------------+--------------+------+-----+---------+----------------+
| id              | int(11)      | NO   | PRI | NULL    | auto_increment |
| project_id      | int(11)      | NO   | MUL | 0       |                |
| name            | varchar(255) | NO   |     |         |                |
| description     | varchar(255) | YES  |     |         |                |
| effective_date  | date         | YES  |     | NULL    |                |
| created_on      | datetime     | YES  |     | NULL    |                |
| updated_on      | datetime     | YES  |     | NULL    |                |
| wiki_page_title | varchar(255) | YES  |     | NULL    |                |
| status          | varchar(255) | YES  |     | open    |                |
| sharing         | varchar(255) | NO   | MUL | none    |                |
| ir_start_date   | date         | YES  |     | NULL    |                |
| ir_end_date     | date         | YES  |     | NULL    |                |
+-----------------+--------------+------+-----+---------+----------------+
12 rows in set (0.00 sec)

EDIT: Made my versions table match yours exactly, except for the two additional columns I have. The issue still persists.

Actions #14

Updated by Adam Gay over 6 years ago

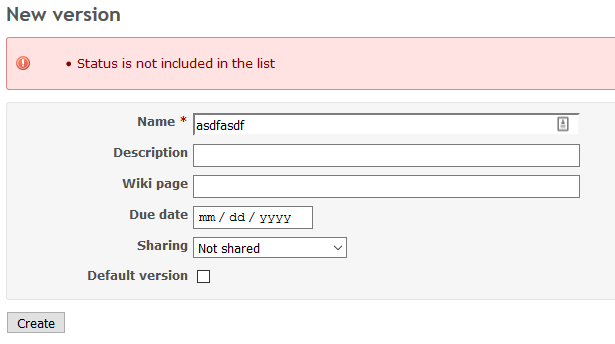

Here's a screenshot of the page after I made the db changes. The "status" drop down does not appear. However if I go and try to edit an already existing version, the "status" dropdown is available and I can submit the changes without issue.

Actions #15

Updated by Adam Gay over 6 years ago

I can manually add the new version via MySQL console, and then go into the Redmine interface and edit it. This at least allows my software team to continue working, however it is not ideal if I have to add new versions via console every time.

EDIT: for reference to anyone out there that may be experiencing this same issue with MySQL, here's what I ran in MySQL to add the info:

INSERT INTO versions (project_id,name,status,sharing)
VALUES (1,'name of version','open','descendants');

Actions #16

Updated by Adam Gay over 6 years ago

I updated a few components on my server's backend last night, and after a soft reboot of the server itself my issue has now magically disappeared.

It seems like the issue may have been resolved after the update to v3.4.3 by:
  1. Manually setting the MySQL db details as above (status to default 'open')
  2. Running rake commands
  3. Reboot the server

It's unclear what step was actually the resolution. Perhaps an Apache restart? I don't use Passenger in my instance, and it is virtualized behind a proxy, so it doesn't fully make sense to me that the Apache restart on the bare server would have done anything. I had rebooted the VM a couple of times yesterday with no luck, but a full server reboot seemed to do the trick. Odd, but at least we're back to normal now.

Actions #17

Updated by name zero almost 6 years ago

We experienced the same; adding a default value of "open" to the "status" field of the "version" table fixed the issue.

Actions #18

Updated by Max Herold over 4 years ago

We also ran into this problem after upgrading to a version > 3.4.0. It was only with one of the two redmine instances we maintain (the older one, which has been running since 2008; both on MySQL).

Checking with DESCRIBE versions;, both the status and the sharing columns didn't have the defaults defined. (Additionally, NULL was allowed for sharing.) I'm not sure how to reproduce those DB differences, or whether it's feasible to do so. The change in #23377 caused it to surface, but I bet the DB differences have been present for a long time on that system.

The fix was to alter the columns to how they're supposed to be (this is for MySQL and redmine 4.0.4):

ALTER TABLE versions CHANGE status status varchar(255) DEFAULT 'open';
ALTER TABLE versions CHANGE sharing sharing varchar(255) DEFAULT 'none' NOT NULL;

Whatever serves your redmine application needs to be restarted afterwards (with passenger, just restart the redmine application).

Actions #19

Updated by Marius BĂLTEANU over 4 years ago

Max Herold wrote:

We also ran into this problem after upgrading to a version > 3.4.0. It was only with one of the two redmine instances we maintain (the older one, which has been running since 2008; both on MySQL).

Do you or did you use any plugin? Maybe one of them removed those defaults. Otherwise, I don't understand why those defaults weren't set by the migrations.

Actions #20

Updated by Bernhard Rohloff over 4 years ago

Actions #21

Updated by Luciano Fantuzzi over 4 years ago

Thank you, the alter cmd worked. Is there more db migrations steps missing? I'm worried about other tables missing fields/data...

Actions #22

Updated by Jonathan Cormier about 2 years ago

Posted duplicate issue here #36384

I am seeing the same issue after migrating from 3.3.1 to 4.2.3.

I retested the migration with no plugins installed and the problem persisted.

My versions table looks like this after the migration.

mysql> show columns from versions;
+-----------------+--------------+------+-----+---------+----------------+
| Field           | Type         | Null | Key | Default | Extra          |
+-----------------+--------------+------+-----+---------+----------------+
| id              | int(11)      | NO   | PRI | NULL    | auto_increment |
| project_id      | int(11)      | NO   | MUL | 0       |                |
| name            | varchar(255) | NO   |     | NULL    |                |
| description     | varchar(255) | YES  |     | NULL    |                |
| effective_date  | date         | YES  |     | NULL    |                |
| created_on      | datetime     | YES  |     | NULL    |                |
| updated_on      | datetime     | YES  |     | NULL    |                |
| wiki_page_title | varchar(255) | YES  |     | NULL    |                |
| status          | varchar(255) | YES  |     | NULL    |                |
| sharing         | varchar(255) | NO   | MUL | NULL    |                |
+-----------------+--------------+------+-----+---------+----------------+
10 rows in set (0.00 sec)

Note: If I bring up a fresh redmine 3.3.1, the status field does have a correct default set. So presumably the migration issue occurred before 3.3.1 but wasn't an issue until the Status field was removed from the new version form.

mysql> show columns from versions;
+-----------------+--------------+------+-----+---------+----------------+
| Field           | Type         | Null | Key | Default | Extra          |
+-----------------+--------------+------+-----+---------+----------------+
| id              | int(11)      | NO   | PRI | NULL    | auto_increment |
| project_id      | int(11)      | NO   | MUL | 0       |                |
| name            | varchar(255) | NO   |     |         |                |
| description     | varchar(255) | YES  |     |         |                |
| effective_date  | date         | YES  |     | NULL    |                |
| created_on      | datetime     | YES  |     | NULL    |                |
| updated_on      | datetime     | YES  |     | NULL    |                |
| wiki_page_title | varchar(255) | YES  |     | NULL    |                |
| status          | varchar(255) | YES  |     | open    |                |
| sharing         | varchar(255) | NO   | MUL | none    |                |
+-----------------+--------------+------+-----+---------+----------------+
10 rows in set (0.00 sec)
Actions #23

Updated by Jonathan Cormier about 2 years ago

So for completeness, I dumped the tables from a fresh 4.2.3 database and from my migrated 4.2.3 database. Cleaned up the output some and diffed them. There are quite a lot of fields from different tables which have the wrong default and I'm not sure what the correct way of fixing them all is.

Some other notable differences:
  • At some point datetime must have been changed to timestamp but wasn't migrated
  • At some point mediumtext must have been changed to text but wasn't migrated
mysqldump (redacted) --no-data > dump-defs-4.2.3-fresh.sql
mysqldump (redacted) --no-data > dump-defs-4.2.3-migrated.sql

cp dump-defs-4.2.3-migrated.sql dump-defs-4.2.3-migrated-noplugins.sql
# Manually removed plugin tables

# Trim CHARSET and Collate settings, also AUTO_INCREMENT to reduce diff size
sed -e 's/DEFAULT CHARSET=[A-Za-z0-9_]*[ ;,]//g; s/COLLATE.[A-Za-z0-9_]*[ ;,]//g; s/AUTO_INCREMENT=[0-9]* //g' dump-defs-4.2.3-fresh.sql > dump-defs-4.2.3-fresh-trimmed.sql
sed -e 's/DEFAULT CHARSET=[A-Za-z0-9_]*[ ;,]//g; s/COLLATE.[A-Za-z0-9_]*[ ;,]//g; s/AUTO_INCREMENT=[0-9]* //g' dump-defs-4.2.3-migrated-noplugins.sql > dump-defs-4.2.3-migrated-noplugins-trimmed.sql

diff -u -d --strip-trailing-cr  dump-defs-4.2.3-fresh-trimmed.sql dump-defs-4.2.3-migrated-noplugins-trimmed.sql > dump-defs-4.2.3.diff
Actions #24

Updated by Jonathan Cormier about 2 years ago

Following Maxin Samuel Herolds suggestion, i fixed the versions default values. Note I also fixed the name and description field to match the fresh 4.2.3 database. I needed to restart redmine for this to take effect.

mysql> ALTER TABLE versions CHANGE status status varchar(255) DEFAULT 'open';
mysql> ALTER TABLE versions CHANGE sharing sharing varchar(255) DEFAULT 'none' NOT NULL;
mysql> ALTER TABLE versions CHANGE name name varchar(255) DEFAULT '' NOT NULL;
mysql> ALTER TABLE versions CHANGE description description varchar(255) DEFAULT '';

mysql> show columns from versions;
+-----------------+--------------+------+-----+---------+----------------+
| Field           | Type         | Null | Key | Default | Extra          |
+-----------------+--------------+------+-----+---------+----------------+
| id              | int(11)      | NO   | PRI | NULL    | auto_increment |
| project_id      | int(11)      | NO   | MUL | 0       |                |
| name            | varchar(255) | NO   |     |         |                |
| description     | varchar(255) | YES  |     |         |                |
| effective_date  | date         | YES  |     | NULL    |                |
| created_on      | datetime     | YES  |     | NULL    |                |
| updated_on      | datetime     | YES  |     | NULL    |                |
| wiki_page_title | varchar(255) | YES  |     | NULL    |                |
| status          | varchar(255) | YES  |     | open    |                |
| sharing         | varchar(255) | NO   | MUL | none    |                |
+-----------------+--------------+------+-----+---------+----------------+

I would like to know if there is a easy way to fix all the other broken defaults incase they cause issues at a later time. Manually fixing them would take forever.

Actions #25

Updated by Marius BĂLTEANU about 2 years ago

  • Has duplicate Defect #36384: Error on roadmap creation after migrating to 4.2.3 added
Actions

Also available in: Atom PDF
