Patch #32523

Improve javascript performances on query edition

Added by Stéphane Parunakian over 1 year ago. Updated over 1 year ago.

Status:NewStart date:
Priority:NormalDue date:
Assignee:-% Done:

0%

Category:Performance
Target version:-

Description

Hi,

When building a query on the /issues page, if you use a filter on users (assigned to, author, etc.) and you have a lot of them, the browser freezes for a few moments. This can be improved by slightly modifying the JavaScript running on the page.

In the public/javascripts/application.js, a lot of "for" loops use var.length in their statements, which is evaluated at each loop.

The attached patch adds, for each loop, a var assignment just before the loop, which is used in the statement.

Performances are greatly improved on Firefox and Chromium.

Regards

javascript-perf.diff Magnifier (1.85 KB) Stéphane Parunakian, 2019-11-27 16:49

javascript-perf2.diff Magnifier (1.85 KB) Stéphane Parunakian, 2019-11-29 10:56


History

#1 Updated by Stéphane Parunakian over 1 year ago

There is a typo in the previous patch. Here is the corrected version.

#2 Updated by Yuichi HARADA over 1 year ago

I changed the for statements of javascript-perf2.diff to forEach.
https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Array/forEach

I think forEach is better because the loop counter variable becomes unnecessary.

diff --git a/public/javascripts/application.js b/public/javascripts/application.js
index e4e902d9c..354185c03 100644
--- a/public/javascripts/application.js
+++ b/public/javascripts/application.js
@@ -165,7 +165,7 @@ function buildFilterRow(field, operator, values) {
   if (!filterOptions) return;
   var operators = operatorByType[filterOptions['type']];
   var filterValues = filterOptions['values'];
-  var i, select;
+  var select;

   var tr = $('<tr class="filter">').attr('id', 'tr_'+fieldId).html(
     '<td class="field"><input checked="checked" id="cb_'+fieldId+'" name="f[]" value="'+field+'" type="checkbox"><label for="cb_'+fieldId+'"> '+filterOptions['name']+'</label></td>' +
@@ -175,11 +175,11 @@ function buildFilterRow(field, operator, values) {
   filterTable.append(tr);

   select = tr.find('td.operator select');
-  for (i = 0; i < operators.length; i++) {
-    var option = $('<option>').val(operators[i]).text(operatorLabels[operators[i]]);
-    if (operators[i] == operator) { option.prop('selected', true); }
+  operators.forEach(function(op){
+    var option = $('<option>').val(op).text(operatorLabels[op]);
+    if (op == operator) { option.prop('selected', true); }
     select.append(option);
-  }
+  });
   select.change(function(){ toggleOperator(field); });

   switch (filterOptions['type']) {
@@ -193,8 +193,7 @@ function buildFilterRow(field, operator, values) {
     );
     select = tr.find('td.values select');
     if (values.length > 1) { select.attr('multiple', true); }
-    for (i = 0; i < filterValues.length; i++) {
-      var filterValue = filterValues[i];
+    filterValues.forEach(function(filterValue){
       var option = $('<option>');
       if ($.isArray(filterValue)) {
         option.val(filterValue[1]).text(filterValue[0]);
@@ -209,7 +208,7 @@ function buildFilterRow(field, operator, values) {
         if ($.inArray(filterValue, values) > -1) {option.prop('selected', true);}
       }
       select.append(option);
-    }
+    });
     break;
   case "date":
   case "date_past":
@@ -236,13 +235,12 @@ function buildFilterRow(field, operator, values) {
     );
     $('#values_'+fieldId).val(values[0]);
     select = tr.find('td.values select');
-    for (i = 0; i < filterValues.length; i++) {
-      var filterValue = filterValues[i];
+    filterValues.forEach(function(filterValue){
       var option = $('<option>');
       option.val(filterValue[1]).text(filterValue[0]);
       if (values[0] == filterValue[1]) { option.prop('selected', true); }
       select.append(option);
-    }
+    });
     break;
   case "integer":
   case "float":

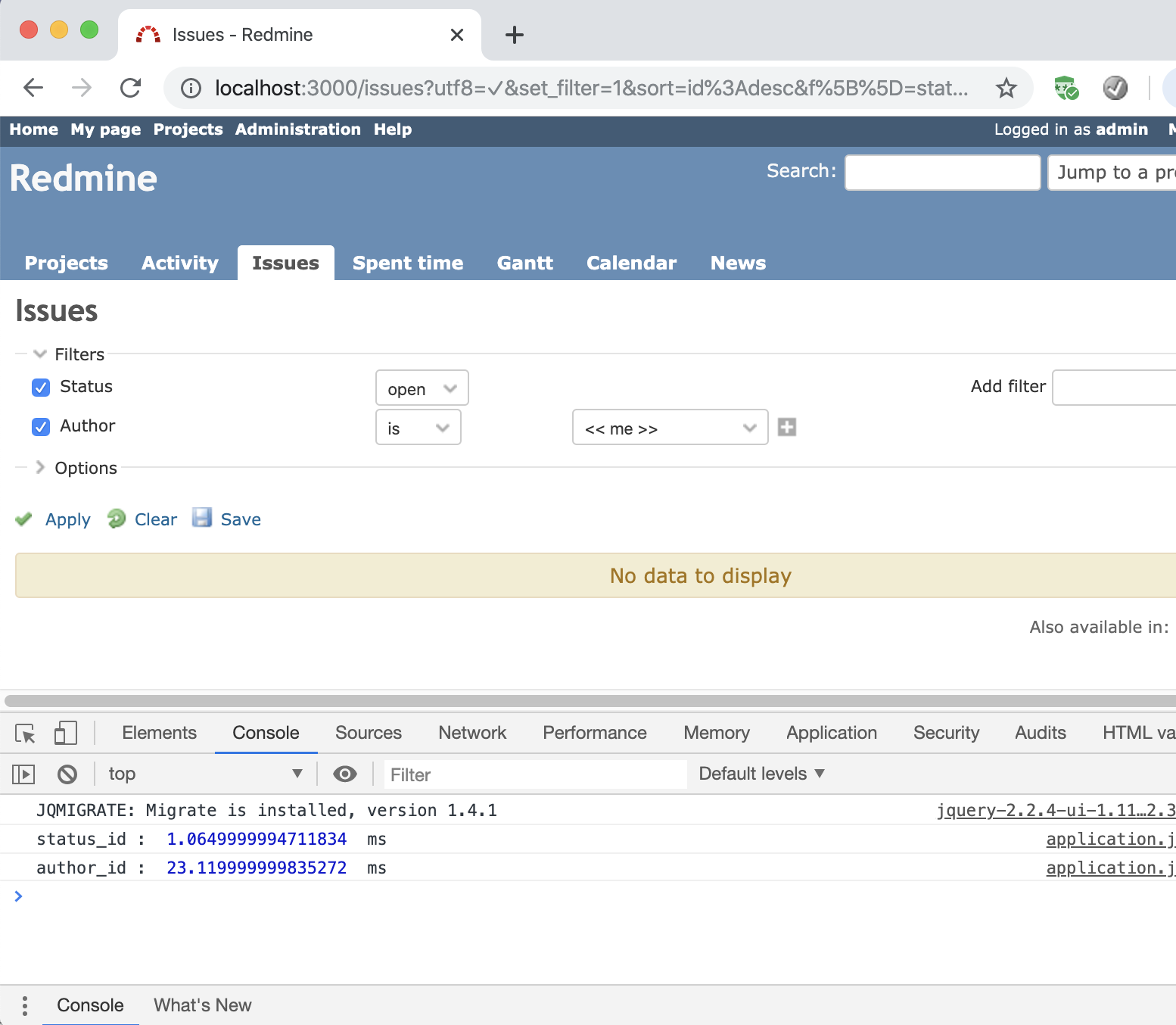

I added 200 users to the project member and compared the execution speed of the Author(author_id) filter. However, there is no significant difference in execution speed.

I measured using performance.now() .
https://developer.mozilla.org/en-US/docs/Web/API/Performance/now

Firefox Chrome Safari Edge IE11
trunk(r19347) 47 ms 24.56499999971129 ms 19 ms 184.20000000000004 ms 264.19999999999993 ms
javascript-perf2.diff 42 ms 23.549999999886495 ms 20 ms 188.89999999999998 ms 262.70000000000004 ms
forEach 42 ms 23.119999999835272 ms 20 ms 167.30000000000018 ms 305.6 ms

#3 Updated by Go MAEDA over 1 year ago

According to #32523#note-2, the patches don't improve the performance so much. I wonder if we should merge any of patches.
