Patch #31971

Change the color of the input field frame when in focus

Added by Mizuki ISHIKAWA almost 3 years ago. Updated almost 3 years ago.

Status:ClosedStart date:
Priority:NormalDue date:
Assignee:Go MAEDA% Done:

0%

Category:UI
Target version:4.1.0

Description

In Redmine 4.0, the frame color changed when the input field was focused.
When the trunk Redmine is run on a browser such as Firefox, the frame color no changes.

I attached a patch to change the frame color.

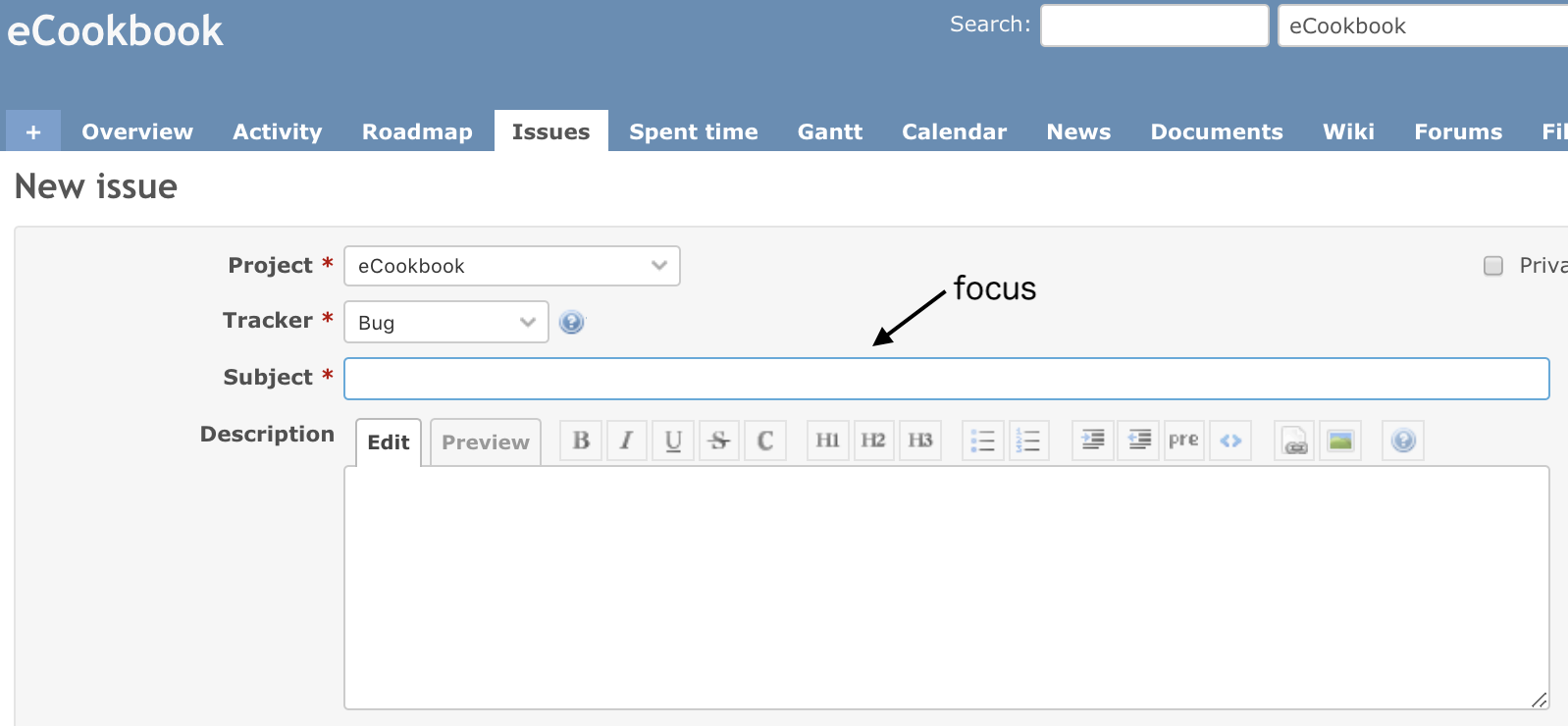

Screenshot after patching:


diff.patch Magnifier (754 Bytes) Mizuki ISHIKAWA, 2019-08-29 02:55



Related issues

Related to Redmine - Patch #31147: Add custom styles for all fields Closed

Associated revisions

Revision 18524
Added by Go MAEDA almost 3 years ago

Highlight the input field that has focus by setting border-color (#31971).

Patch by Mizuki ISHIKAWA.

Revision 18527
Added by Go MAEDA almost 3 years ago

input[type="number"] should be highlighted as well when it has focus (#31971).

History

#1 Updated by Go MAEDA almost 3 years ago

  • Related to Patch #31147: Add custom styles for all fields added

#2 Updated by kim kk almost 3 years ago

Subjectの部分を一回目クリックした場合は、
Hoverしたデータのリストが表示されますが、
他のText Areaをクリックした後、再度Subjectをクリックしても、
Hoverしたデータのリストが表示されないです。

Sorry. English is no good. use Japanese.

#3 Updated by Go MAEDA almost 3 years ago

kim kk wrote:

Sorry. English is no good. use Japanese.

Thank you for your feedback. I will add English translation to #31971#note-2 later.

#4 Updated by Go MAEDA almost 3 years ago

kim kk wrote:

Subjectの部分を一回目クリックした場合は、
Hoverしたデータのリストが表示されますが、
他のText Areaをクリックした後、再度Subjectをクリックしても、
Hoverしたデータのリストが表示されないです。

Do you mean that the patch breaks the auto-complete feature? I could not reproduce the problem. The patch changes only the appearance of elements, so I think it does not affect auto-complete.

Could you describe the detailed steps to reproduce and attach screenshots?

#5 Updated by Go MAEDA almost 3 years ago

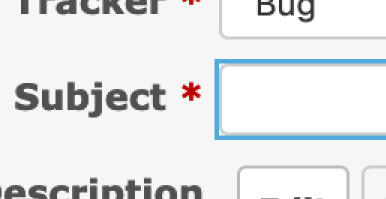

I tried out the patch with Firefox. It made the appearance nicer but I round a problem. Input fields have rounded corners, but the corners of the outline are not rounded.

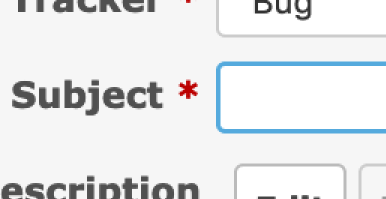

How about updating the patch as follows? I think it makes the appearance much nicer.

diff --git a/public/stylesheets/application.css b/public/stylesheets/application.css
index b66a07e7d..7c5eb5838 100644
--- a/public/stylesheets/application.css
+++ b/public/stylesheets/application.css
@@ -484,6 +484,16 @@ input[type="submit"] {
 input[type="submit"]:hover {
   background-color: #ddd;
 }
+
+input[type="text"]:focus, input[type="text"]:active,
+input[type="password"]:focus, input[type="password"]:active,
+input[type="date"]:focus, input[type="date"]:active,
+select:focus, select:active,
+textarea:focus, textarea:active {
+  border: 1.5px solid #5ad;
+  outline: none;
+}
+
 select[multiple=multiple] {background: #fff; padding-right: initial; height: auto;}
 fieldset {border: 1px solid #e4e4e4; margin:0; min-width: inherit;}
 legend {color: #333;}

#6 Updated by Go MAEDA almost 3 years ago

  • Target version set to 4.1.0

Setting the target version to 4.1.0.

#7 Updated by Mizuki ISHIKAWA almost 3 years ago

Go MAEDA wrote:

I tried out the patch with Firefox. It made the appearance nicer but I round a problem. Input fields have rounded corners, but the corners of the outline are not rounded.
How about updating the patch as follows? I think it makes the appearance much nicer.

[...]

The change looks better!
I think it would be better to change "border: 1.5px" to “border: 1px” to match the existing border style.

diff --git a/public/stylesheets/application.css b/public/stylesheets/application.css
index 04fc3ae12..edf96d4fe 100644
--- a/public/stylesheets/application.css
+++ b/public/stylesheets/application.css
@@ -484,6 +484,16 @@ input[type="submit"] {
 input[type="submit"]:hover {
   background-color: #ddd;
 }
+
+input[type="text"]:focus, input[type="text"]:active,
+input[type="password"]:focus, input[type="password"]:active,
+input[type="date"]:focus, input[type="date"]:active,
+select:focus, select:active,
+textarea:focus, textarea:active {
+  border: 1px solid #5ad;
+  outline: none;
+}
+
 select[multiple=multiple] {background: #fff; padding-right: initial; height: auto;}
 fieldset {border: 1px solid #e4e4e4; margin:0; min-width: inherit;}
 legend {color: #333;}

#8 Updated by Go MAEDA almost 3 years ago

Mizuki ISHIKAWA wrote:

The change looks better!
I think it would be better to change "border: 1.5px" to “border: 1px” to match the existing border style.

Thank you for your feedback. I think the patch in #31971#note-7 is ready to commit.

#9 Updated by Go MAEDA almost 3 years ago

  • Status changed from New to Closed
  • Assignee set to Go MAEDA

Committed the patch. Thank you.

#10 Updated by Marius BALTEANU almost 3 years ago

  • Status changed from Closed to Reopened

Go Maeda, Mizuki, is there any reason for why you chose to target each type of input instead of using input?

Mariuss-MacBook-Pro:redmine mariusbalteanu$ git diff
diff --git a/public/stylesheets/application.css b/public/stylesheets/application.css
index 95f857074..169b1ef48 100644
--- a/public/stylesheets/application.css
+++ b/public/stylesheets/application.css
@@ -512,10 +512,7 @@ input[type="submit"]:hover {
   background-color: #ddd;
 }

-input[type="text"]:focus, input[type="text"]:active,
-input[type="password"]:focus, input[type="password"]:active,
-input[type="date"]:focus, input[type="date"]:active,
-input[type="number"]:focus, input[type="number"]:active,
+input:focus, input:active,
 select:focus, select:active,
 textarea:focus, textarea:active {
   border: 1px solid #5ad;

#11 Updated by Marius BALTEANU almost 3 years ago

  • Status changed from Reopened to Closed
