Patch #21493

open

Tweak colors of default theme

Added by Go MAEDA over 7 years ago. Updated 6 months ago.

Status:
New
Priority:
Normal
Assignee:
-
Category:
UI
Target version:
Candidate for next major release
Start date:
Due date:
% Done:

0%

Estimated time:

Description

I suggest slightly changed colors for default theme in order to improve readability and appearance.

  • deeper black for headings (#content h1, h2, h3, h4)
  • vivid color for header (#top-menu / #header)
  • blighter gray for sidebar (#main {background-color})
  • deeper brack for headings in sidebar (#sidebar h3)
  • blighter gray for boxes (.box)
  • blighter gray for inactive tabs (#content .tabs ul li a)
  • lighter yellow for issues (div.issue)
  • blighter gray (same color with wiki.pre {background}) for wiki diff background (.text-diff)
  • blighter gray for scm background (table.filecontent / table.annotate td.line-code)

Files

Download all files
change-default-colors.diff (4.8 KB) change-default-colors.diff Go MAEDA, 2015-12-12 10:40
screenshot-2.jpg (104 KB) screenshot-2.jpg Go MAEDA, 2015-12-12 10:44
screenshot-1.jpg (131 KB) screenshot-1.jpg Go MAEDA, 2015-12-12 10:44
screenshot-3.jpg (195 KB) screenshot-3.jpg Go MAEDA, 2015-12-12 10:44
21493-change-default-colors-v2.diff (3.63 KB) 21493-change-default-colors-v2.diff Go MAEDA, 2017-03-08 10:38
21493-change-default-colors-v3.diff (3.99 KB) 21493-change-default-colors-v3.diff Mizuki ISHIKAWA, 2019-07-03 04:09
21493-change-default-colors-v4.diff (4.15 KB) 21493-change-default-colors-v4.diff Bernhard Rohloff, 2021-03-22 13:22
0001-Use-CSS-custom-properties-for-some-values.patch (12.7 KB) 0001-Use-CSS-custom-properties-for-some-values.patch Go MAEDA, 2022-10-12 11:33
0002-Adjust-colors-to-improve-readability.patch (2.21 KB) 0002-Adjust-colors-to-improve-readability.patch Go MAEDA, 2022-10-12 11:34

Related issues

Related to Redmine - Patch #32017: A much happier blue palette for the header (#header + #top-menu)New

Actions
Actions
Copy link
 #1

Updated by Go MAEDA about 7 years ago

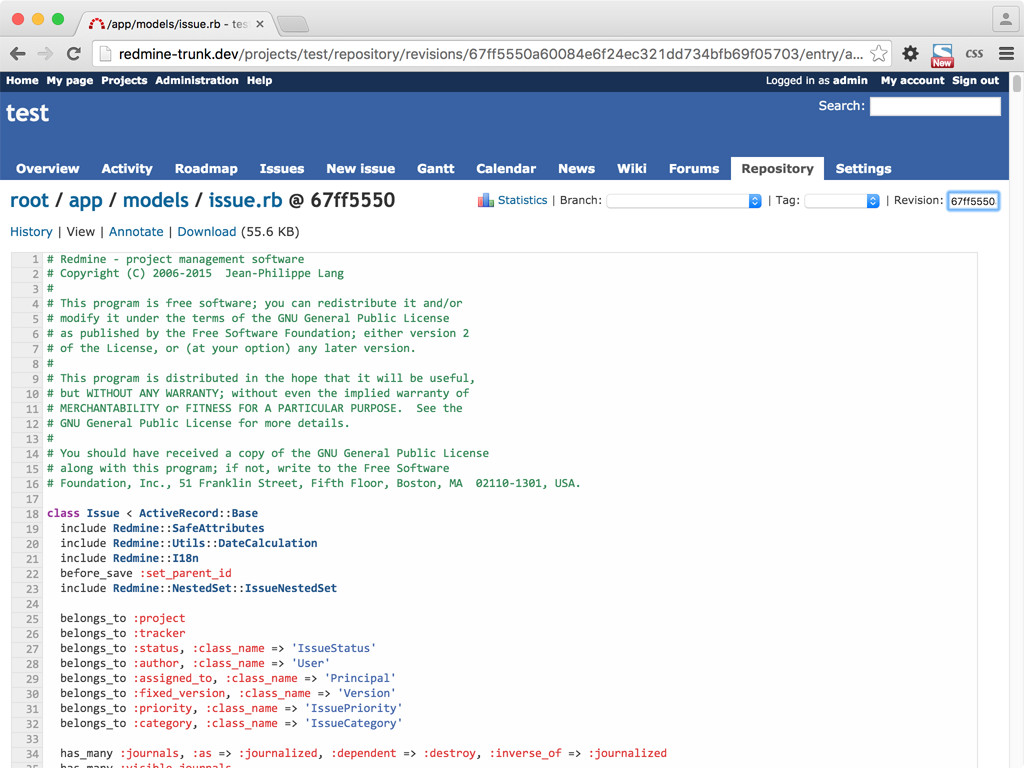

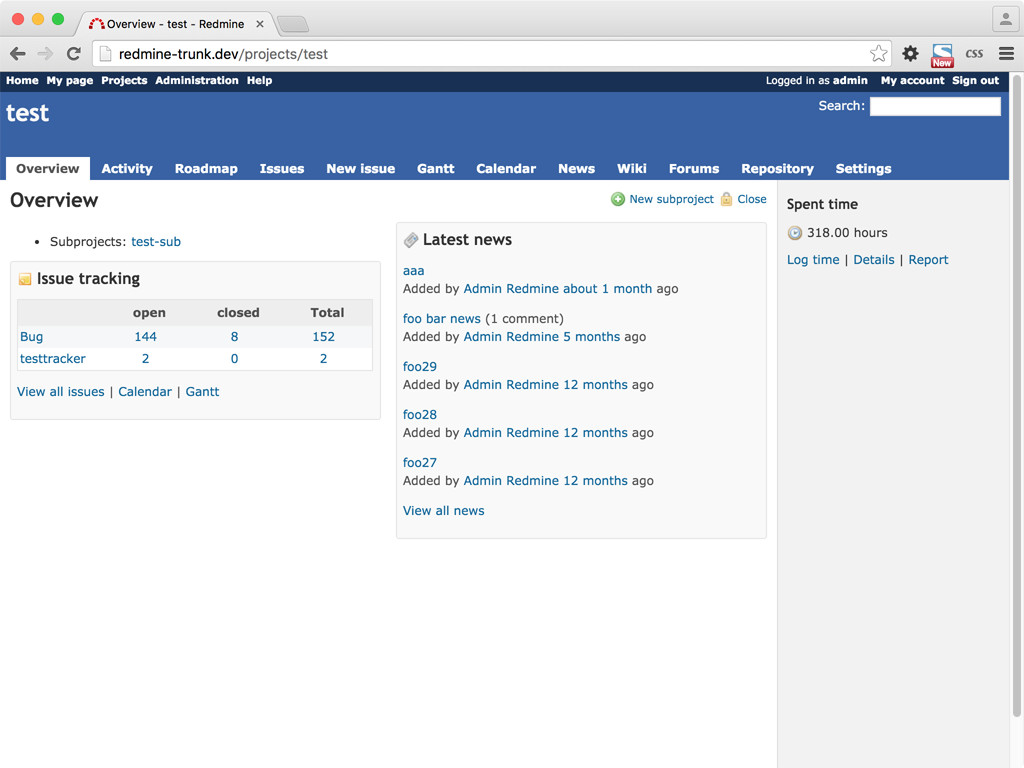

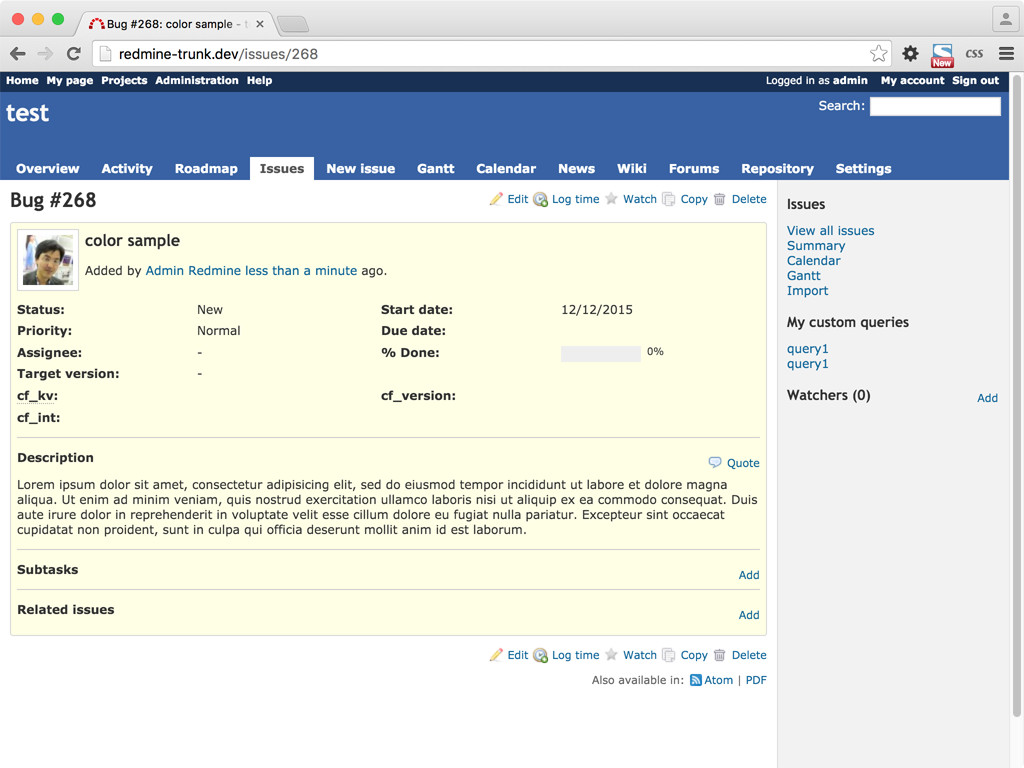

Here are screenshots of the patch. Please take a look at them. I am sure that these changes improve readability and appearance.

Actions
Copy link
 #2

Updated by Andrey Lobanov (RedSoft) over 6 years ago

This patch is really changes readability in right way.

Actions
Copy link
 #3

Updated by Toshi MARUYAMA over 6 years ago

  • Target version set to 3.4.0
Actions
Copy link
 #4

Updated by Jean-Philippe Lang over 6 years ago

  • Target version deleted (3.4.0)

Tastes and colors... I personally prefer the current colors over the proposed changes (header would be too dark for me).

Actions
Copy link
 #5

Updated by Go MAEDA about 6 years ago

Jean-Philippe Lang wrote:

Tastes and colors... I personally prefer the current colors over the proposed changes (header would be too dark for me).

Thanks for your feedback.
I have updated the patch. The new patch does not change header color, only improves the readability of texts. I think current colors of texts are too light.

  • deeper black for headings (#content h1, h2, h3, h4)
  • vivid color for header (#top-menu / #header)
  • blighter gray for sidebar (#main {background-color})
  • deeper brack for headings in sidebar (#sidebar h3)
  • blighter gray for boxes (.box)
  • blighter gray for inactive tabs (#content .tabs ul li a)
  • lighter yellow for issues (div.issue)
  • blighter gray (same color with wiki.pre {background}) for wiki diff background (.text-diff)
  • blighter gray for scm background (table.filecontent / table.annotate td.line-code)
Actions
Copy link
 #6

Updated by Go MAEDA over 5 years ago

  • Target version set to 4.1.0

The second patch improves readability. Please take a look again.
Setting target version to 4.1.0.

Actions
Copy link
 #7

Updated by Mizuki ISHIKAWA almost 4 years ago

+1

Actions
Copy link
 #8

Updated by Makoto Saito almost 4 years ago

+1
I think it's necessary to tend to use standard setting of redmine as a tool.

Actions
Copy link
 #9

Updated by Marius BALTEANU over 3 years ago

  • Assignee set to Go MAEDA

FYI, the patch cannot be applied on the latest trunk, maybe it should be updated.

Actions
Copy link
 #10

Updated by Mizuki ISHIKAWA over 3 years ago

I will attach a patch that has been modified to apply to the trunk.
@Go MAEDA, Would you confirm that the patched default theme is what you intended?

Actions
Copy link
 #11

Updated by Bernhard Rohloff over 3 years ago

  • Related to Patch #32017: A much happier blue palette for the header (#header + #top-menu) added
Actions
Copy link
 #12

Updated by Go MAEDA over 3 years ago

  • Target version changed from 4.1.0 to 4.2.0
Actions
Copy link
 #13

Updated by Go MAEDA about 3 years ago

  • Assignee deleted (Go MAEDA)
Actions
Copy link
 #14

Updated by Bernhard Rohloff about 2 years ago

Here's a new version of the patch which can be applied to the latest trunk (r20837).

Actions
Copy link
 #16

Updated by Marius BALTEANU about 2 years ago

  • Target version changed from 4.2.0 to 5.0.0

Need more feedback on this.

Actions
Copy link
 #17

Updated by Marius BALTEANU about 1 year ago

  • Target version changed from 5.0.0 to Candidate for next major release
Actions
Copy link
 #18

Updated by Go MAEDA 6 months ago

I have updated the patch.

  • Use CSS custom properties for values affected by the patch. Since Redmine no longer supports Internet Explorer, now we can use CSS custom properties
  • Slightly changed colors from the previous patch.
